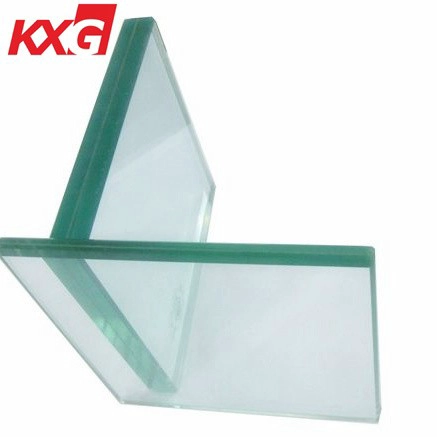

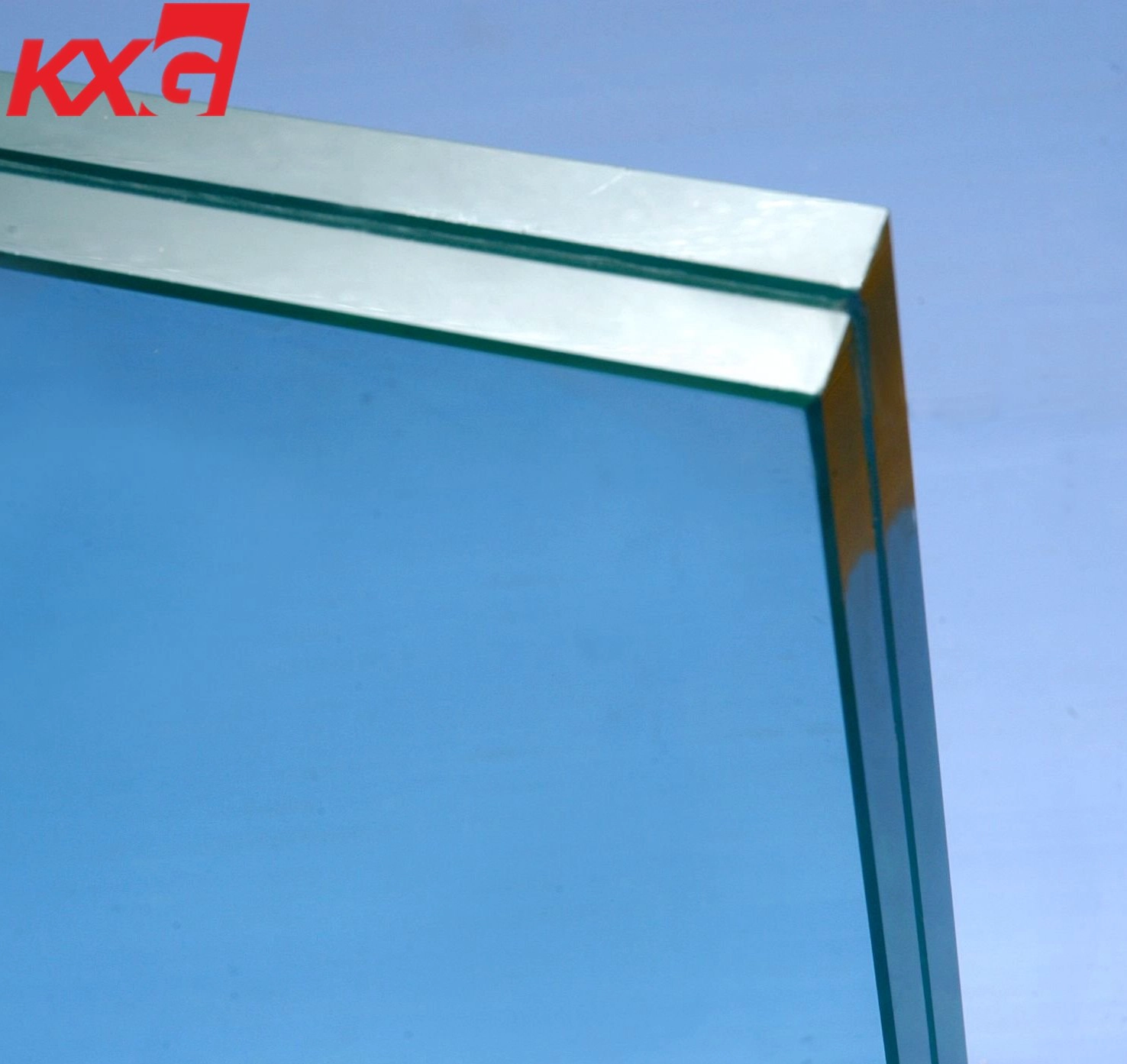

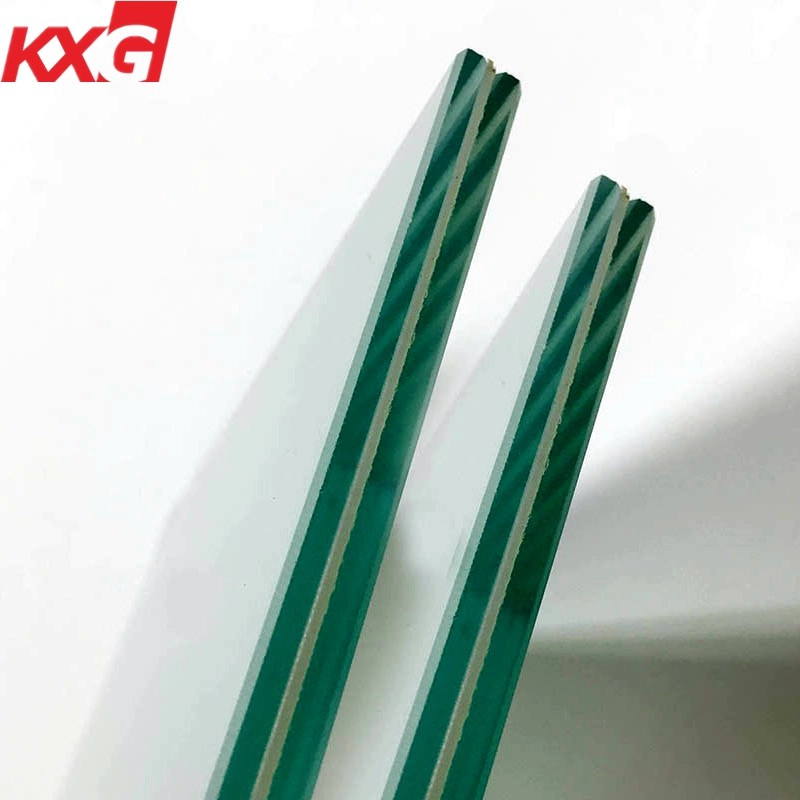

8.38mm 11.14mm 13.52mm reflective laminated float glass-442 553 664 color reflective tempered laminated glass

  • 1.Product name: 8.38mm 11.14mm 13.52mm reflective laminated float glass
  • 2.Size: Max 3300*13000mm, Mini 300*300mm,any customized measurements
  • 3.Glass thickness: 4+4mm, 5+5mm, 6+6mm, 8+8mm,10+10mm, 12+12mm, etc.
  • 4.Max size 3000*13000mm, any customized size could be produced;
  • 5.Processing: polished edges, drill holes, cutouts, cut notches, etc.
  • 6.Used as interior partition wall glass, outdoor safety balustrade glass, etc.
  • 7.Production time within 15 days after order is confirmed.
  • 8.Certificate: SGCC CE/EN12150,ANSIZ97.1,AS/NZS2208

8.38mm 11.14mm 13.52mm reflective laminated float glass-442 553 664 color reflective laminated temperedglass


Reflective laminated safety glass is made up from one piece reflective glass and one piece clear glass with PVB/SGP interlayer bonded together, to make sure the glass broken pieces will stick on the interlayer when breakage, so that reduce the risk of harm. With different requirement, theglass can be normal reflective laminated float glass, reflective tempered laminated glass, heat soaked reflective laminated glass, curved reflective laminated glass, etc.

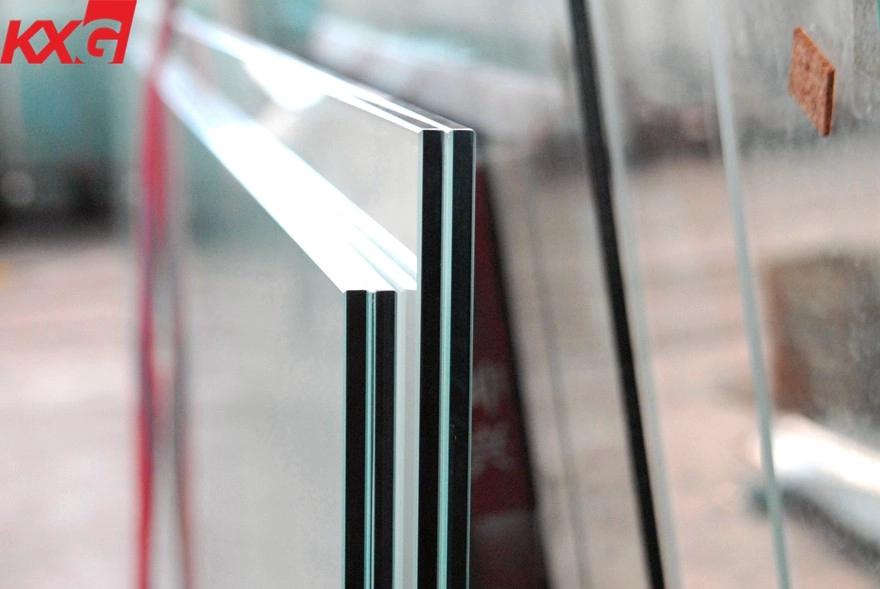

12.76mm laminated glass



Reflective laminated glass size

2140x3300mm, 2140x3660mm,

2440x3300mm, 2440x3660mm and it can custom

Laminated reflective glass thickness

8.38mm (4+0.38mm+4mm),

8.76mm (4+0.76mm+4mm),

10.38mm (5+0.38mm+5mm),

10.76mm (5+0.76mm+5mm),

11.14mm (5+1.14mm+5mm),

11.52mm (5+1.52mm+5mm),

12.76mm (6+0.76mm+6mm),

13.14mm (6+1.14mm+6mm),

13.52mm (6+1.52mm+6mm), etc.

Laminated reflective glass color

F Green/Light Green, Ford Blue, Black, Silver, Euro Bronze, Golden, Dark Grey, Euro Grey, Dark Green, Dark Blue, Smoke, etc.

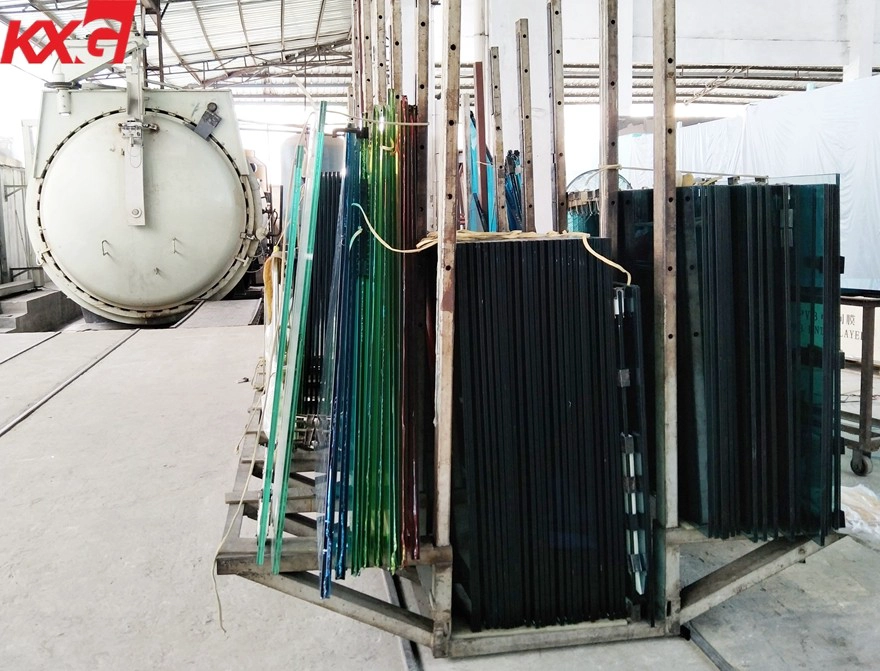

Laminated glass process


Features

The solar reflective laminated glass haveboth advantages of reflective glass and laminated glass, so in one hand, it ishigh safety glass, not easy to penetrated because PVB/SGP interlayer has strongtenacity and can weaken a mass of striking energy. And even it is broken, itwon’t fall down to hurt human because the broken pieces will stick on theinterlayer. In another hand, it is solar control glass, it can control solarenergy radiation effectively, and block far infrared radiation, to help saveexpenses of air conditioners in summer, and save heating expenses in winter.What’s more, there are many different colors of reflective glass available, tomake the color reflective laminated glass to add aesthetic senses to building appearance, make the buildings more attractive.

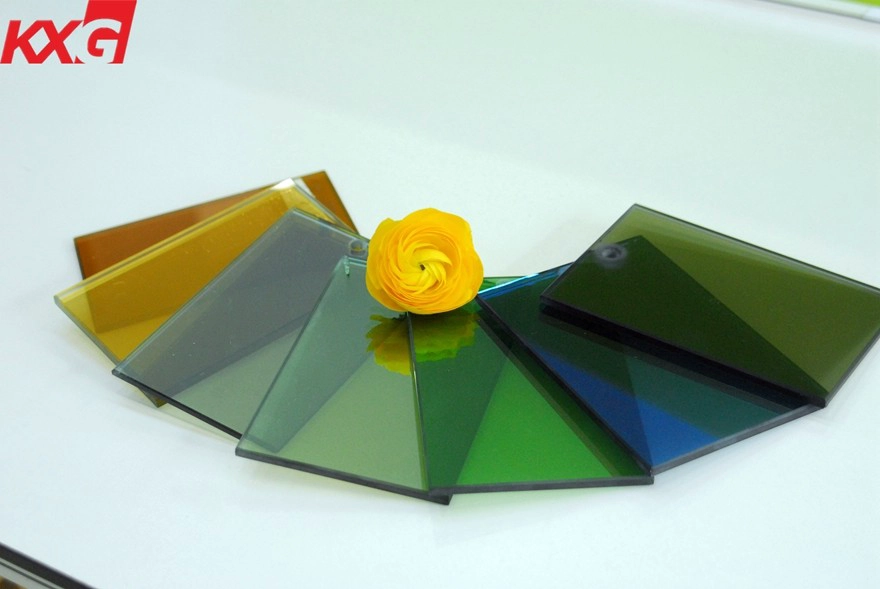

Color Reflective glass


Application

The reflective laminated glass can use to make color reflective laminated insulated glass, and because of high security and energy saving, it is popular to use at exterior, such as outdoor wall glass, outside balcony glass, external window glass, roof skylight glass,canopy glass, etc. In order to avoid the light pollution and build good ecological environment, please don’t install the reflective surface at the outside.

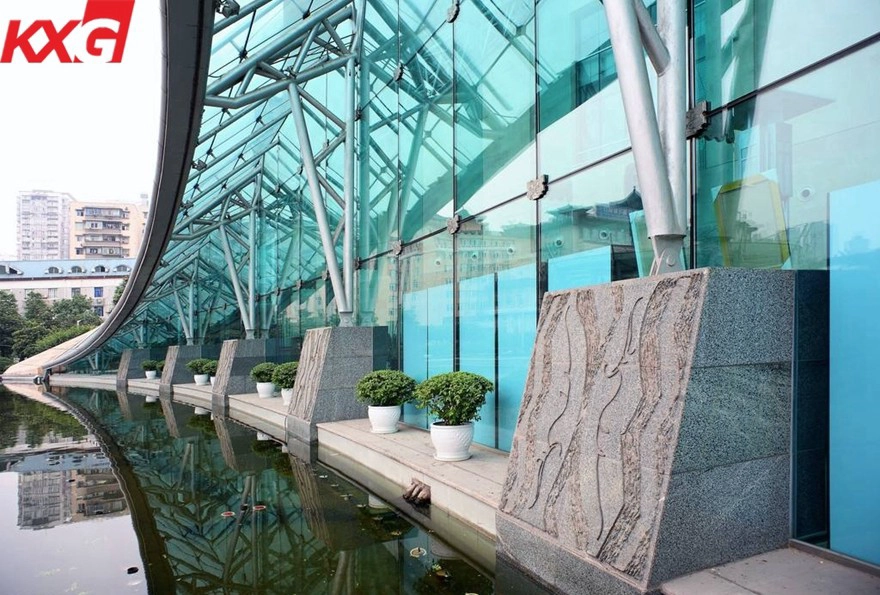

Color reflective laminated glass building
