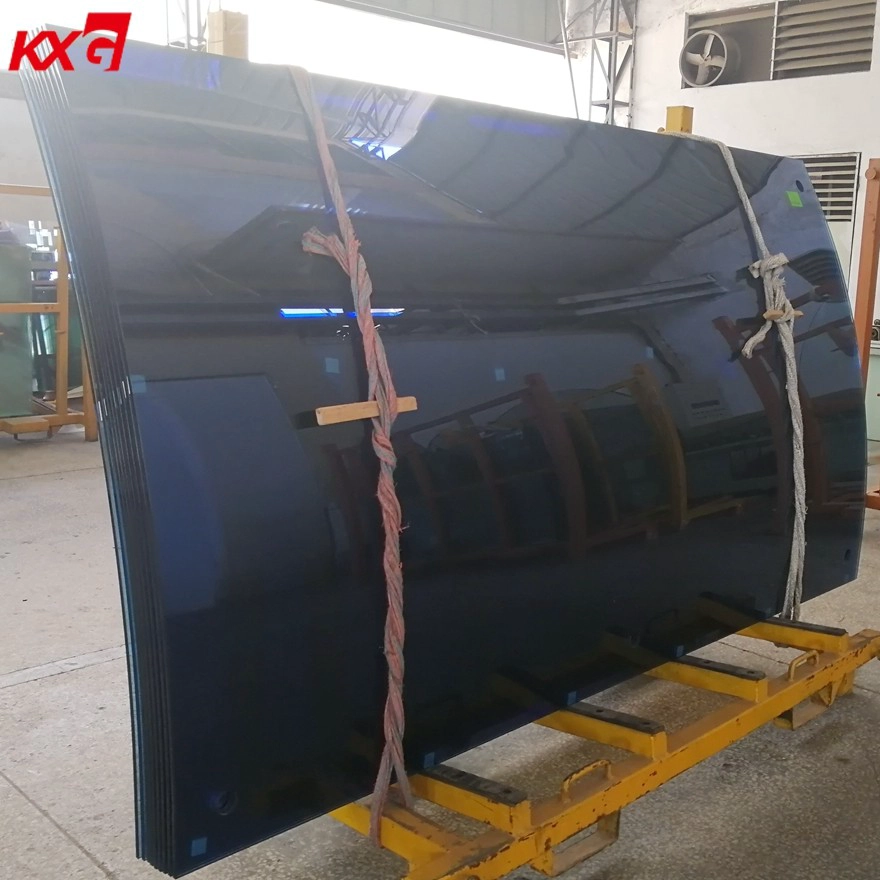

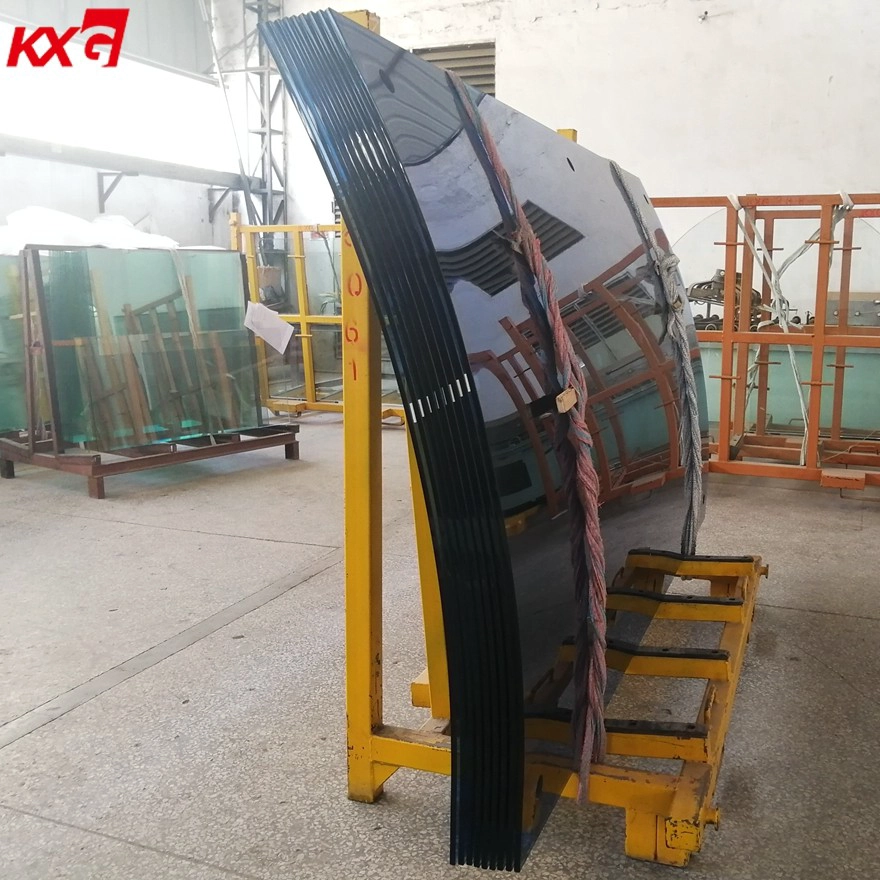

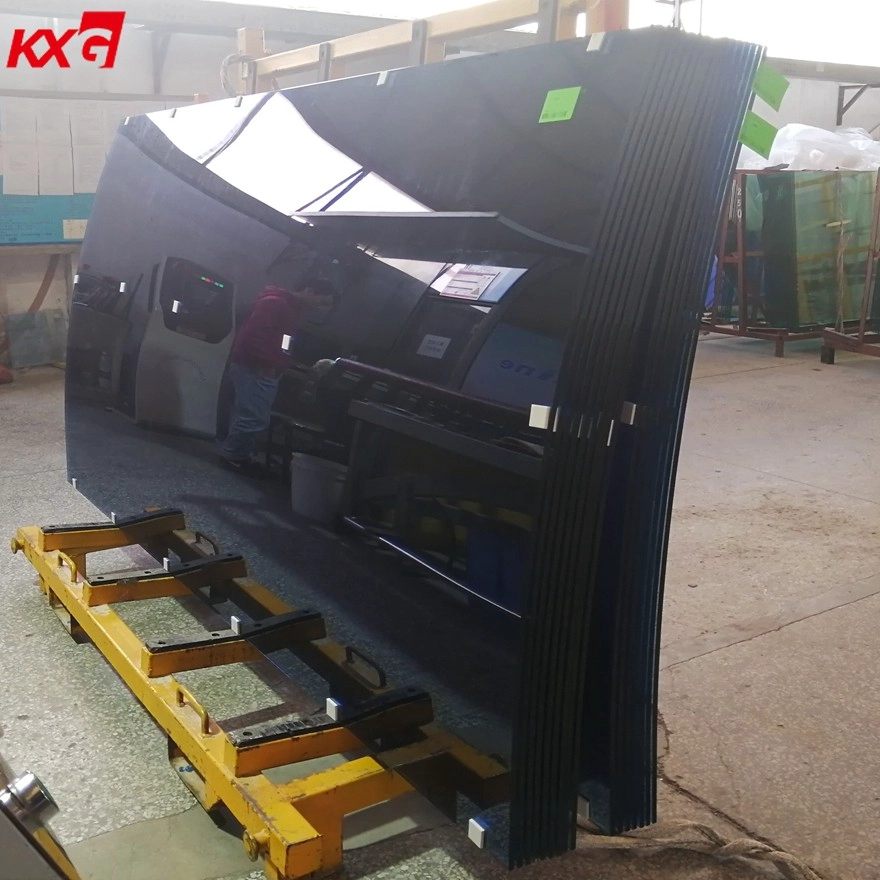

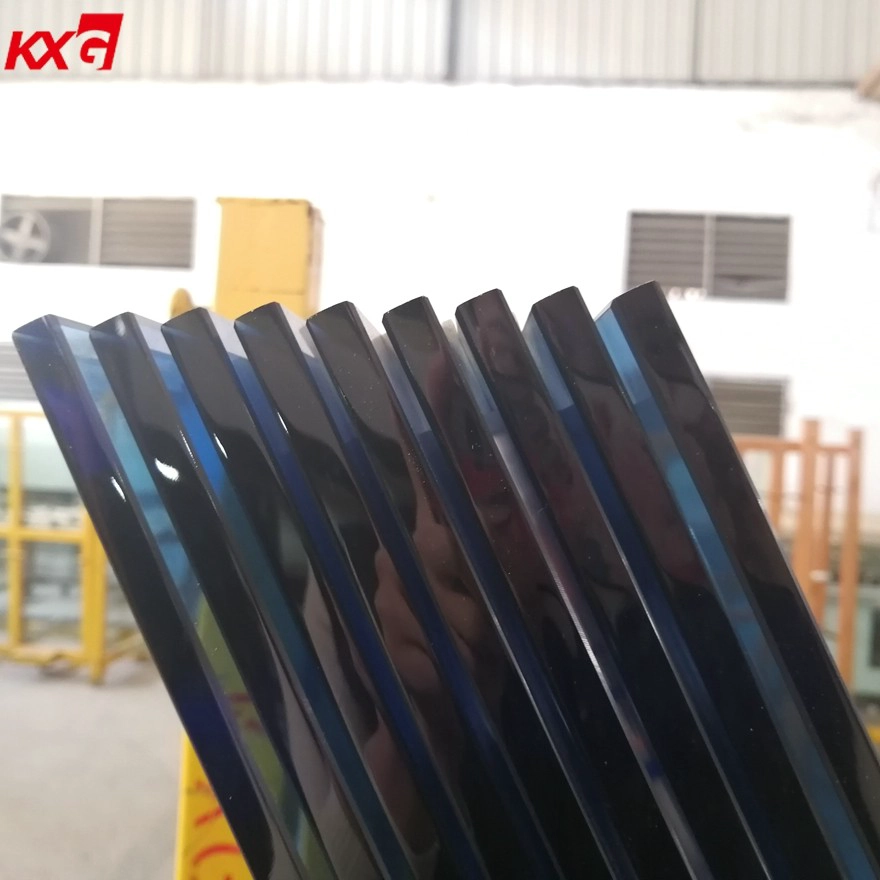

12mm Ford blue curved tempered glass, tinted safety bent tempered glass, toughened curved glass manufacturer
- 1.Glass thickness:4-19mm
- 2.Maximum size: 2440*8000mm
- 3.Minimum Radius Range: 5-6mm R>450mm; 8mm-10mm R>650mm; 12mm-19mm R>1200
- 4.Glass color: clear,ultra clear, green,blue,gray,brown
- 5.Features: It has same safety and ability of anti-impact with flat tempered glass,but has a higher intensity for the wind pressure and bending than flat tempered glass.
- 6.Certification: CCC,ISO,CE,AS/NZAS2208,ANSI,etc
- 7.Processing: curved tempered laminated glass, curved tempered insulated glass
- 8.Application: Railing, doors, partition wall, curtain wall, etc
12mm Ford blue toughened glass is made by heating ford blue float glass to approximately 700° Celsius then cooling the outer surfaces rapidly. This process makes the glass very strong and shock resistant thus more durable.

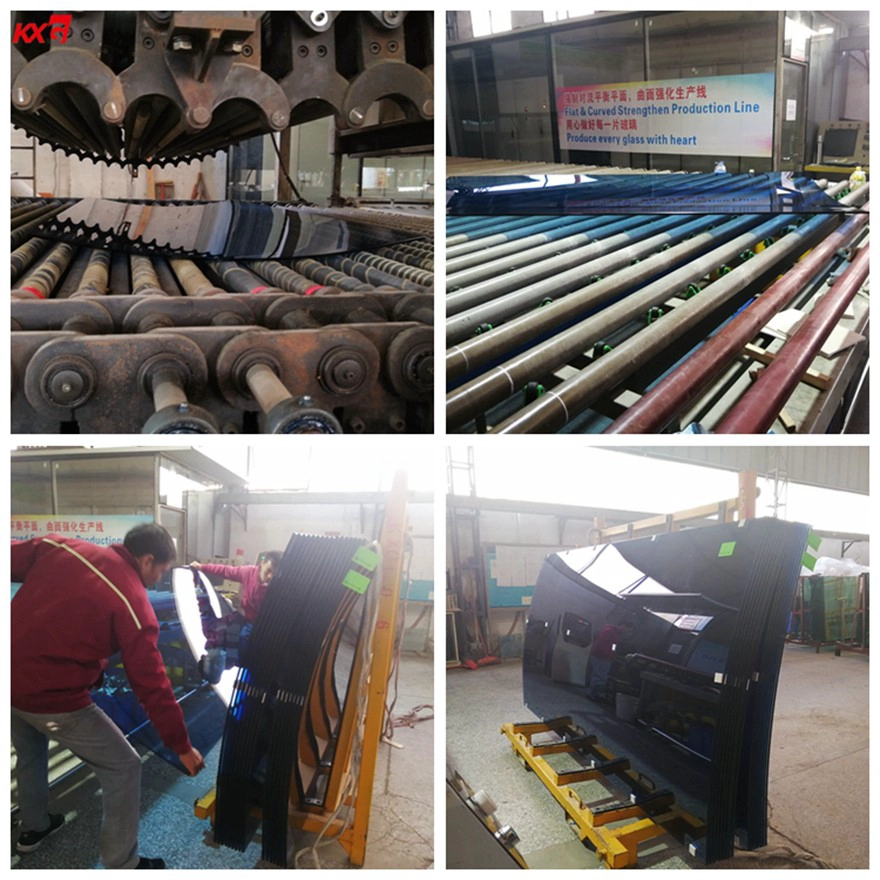

Curved Glass uses this toughening technique though two different horizontal tempering furnaces. Producing tight radius and tangent radius curved glass panels, up to larger size architectural panels in a full range of glass types.
Glass products Bent glass/curved tempered glass
|Glass types||clear float glass, ultra clear glass, tinted glass, reflective glass, low E glass, acid etched glass, etc|
|Radius Range||Minimum Radius: 5-6mm R>450mm; 8mm-10mm R>650mm; 12mm-19mm R>1200
Maximum height: 8000mm
|Further processing services|| Drilled holes, cut notches, polished edges, beveled edges,silkscreen printed, heat strengthened,
full tempered, heat soaked testing, etc.
|Glass combination|| Curved laminated glass , curved insulated glass
|Delivery date|| 10-20 days

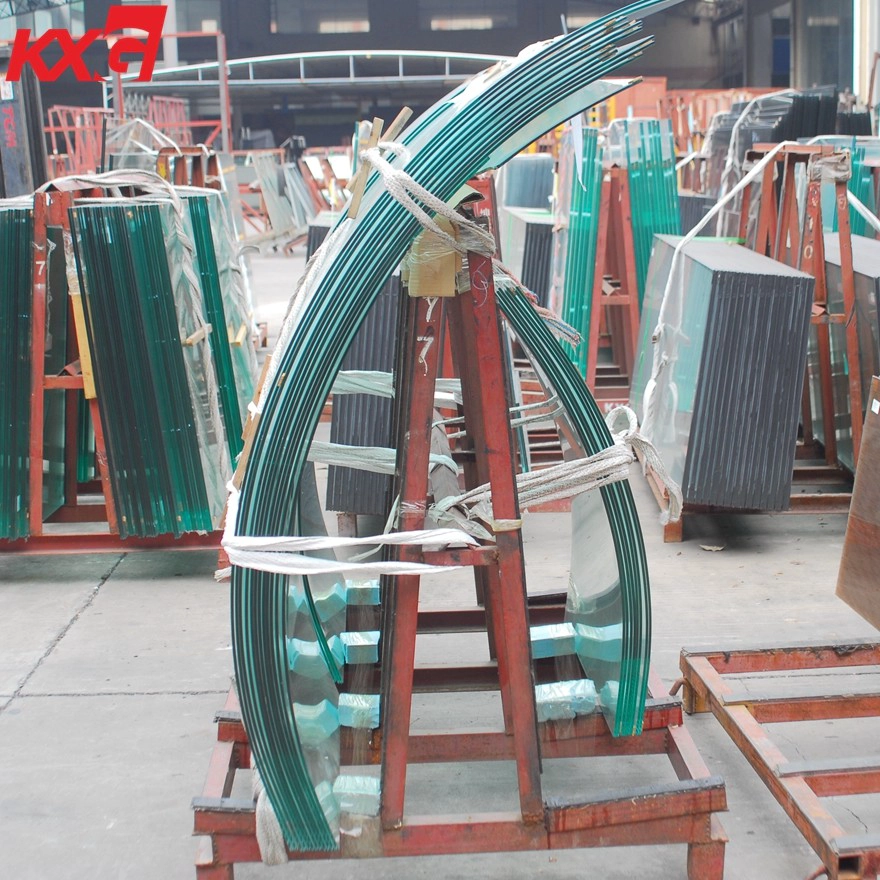

Type of curved glass
According to the requirements of the building, curved glass is used in three different forms.
Bent annealed glass is often used for display applications where the necessity of safety glass is minimal. In display windows and showcases, this curved glass is commonly used.

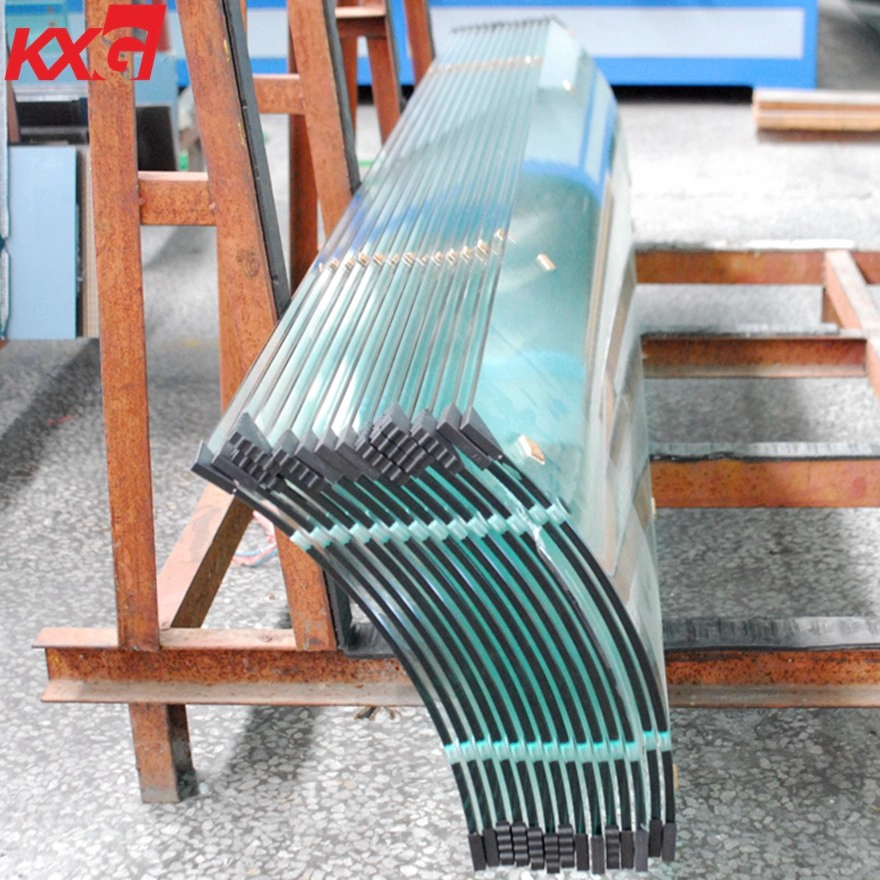

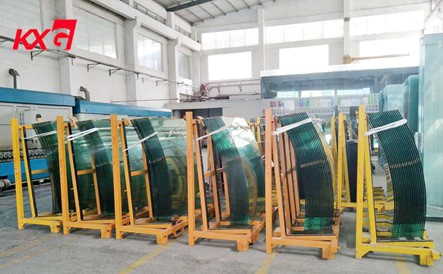

|Curved toughened glass is strong and impact resistant because annealed glass is heated to 700 ° C and cooled rapidly to induce glass strength. This type of glass is used in staircases, cabins and other interiors.|

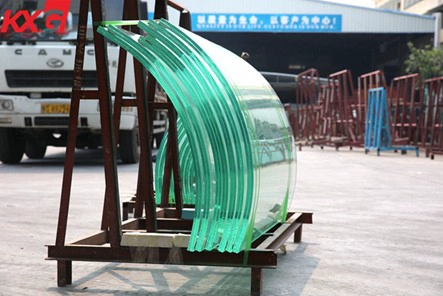

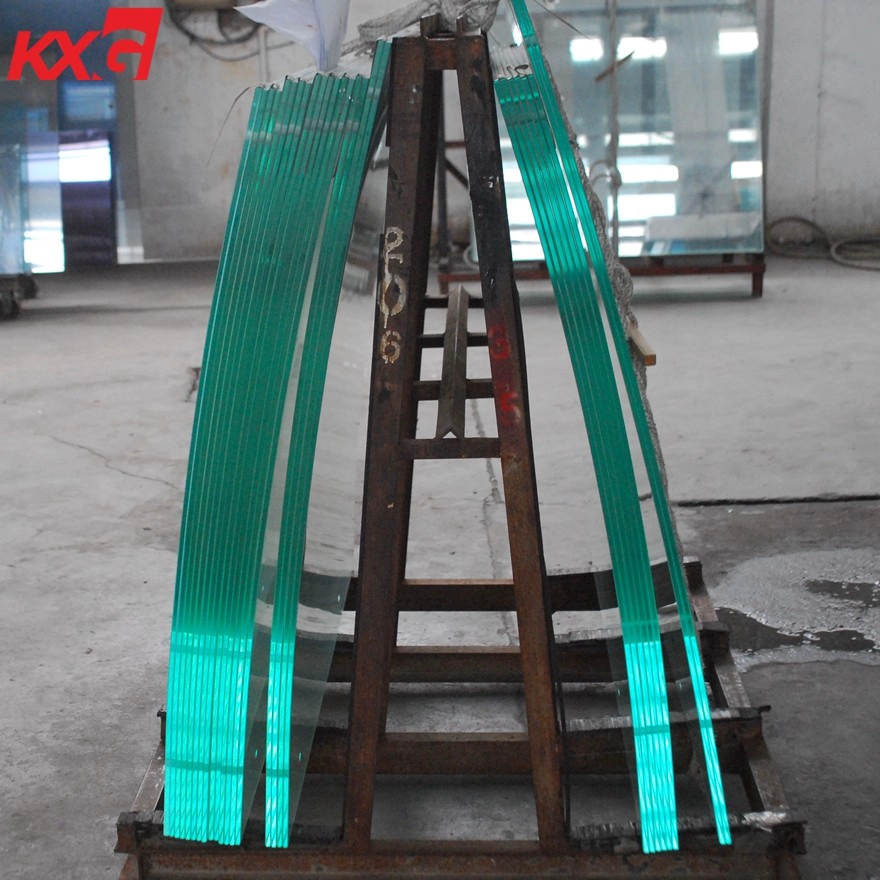

Curved laminated glass is the toughest glass because the two glass layers are permanently bonded to form it. Even when the glass shatters, it stays within the lamination and doesn’t break into pieces.
|Edge Works Or Other processing||Whether required Or Not|
|Heat strengthened glass/ laminated glass/ insulated glass||Yes|
|Heat soaked testing||Yes|
|Drilling holes and waterjet cutting||Yes|

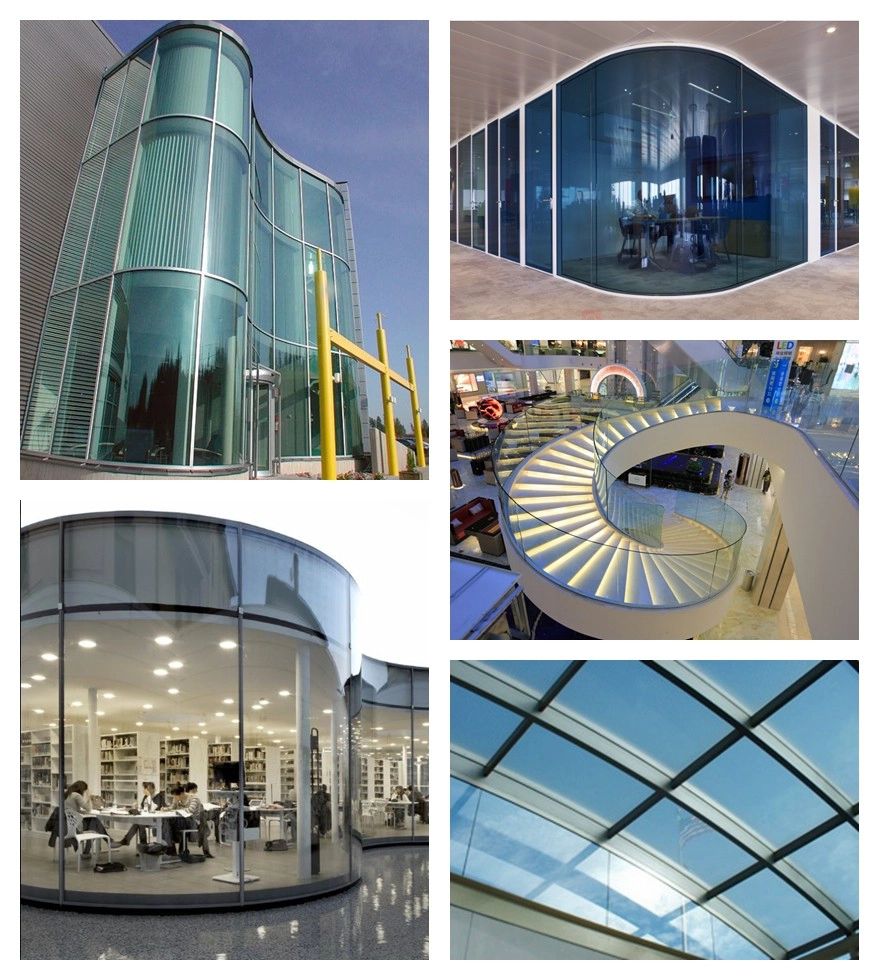

Curved glass application:
curved tempered glass paitition, curved tempered glass doors

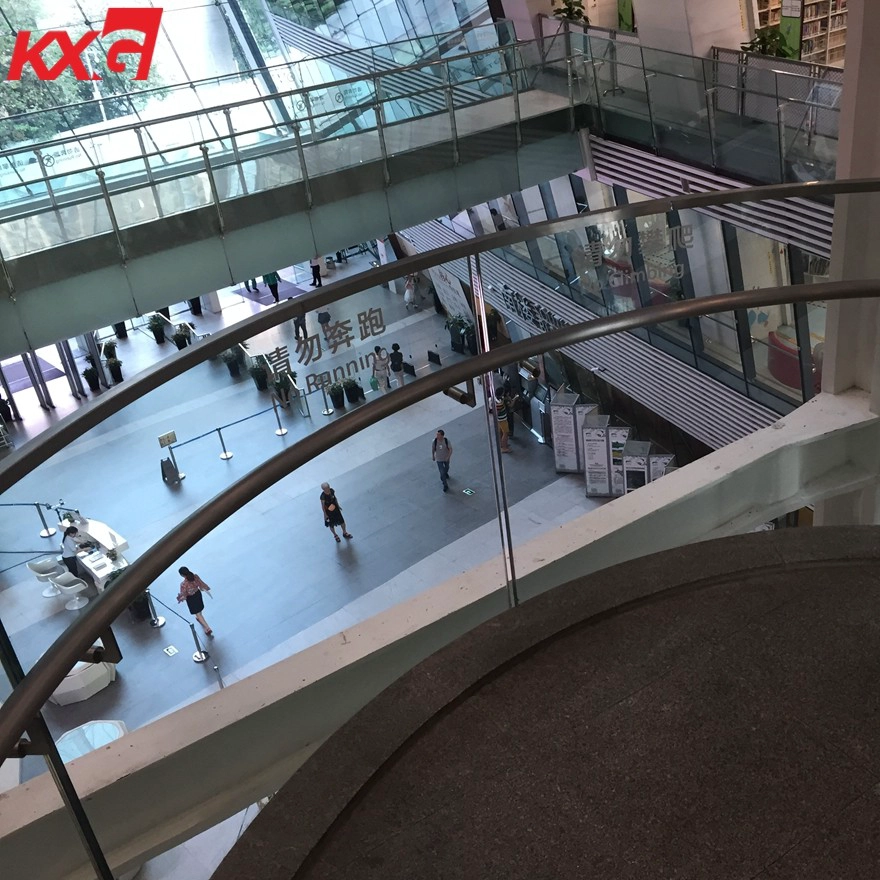

curved toughened laminated glass roof, curved tempered laminated glass railings
curved laminated glass balcony, curved laminated glass balustrades
curved tempered laminated glass skylights, curved tempered insulated glass curtain wall
KXG company introduction

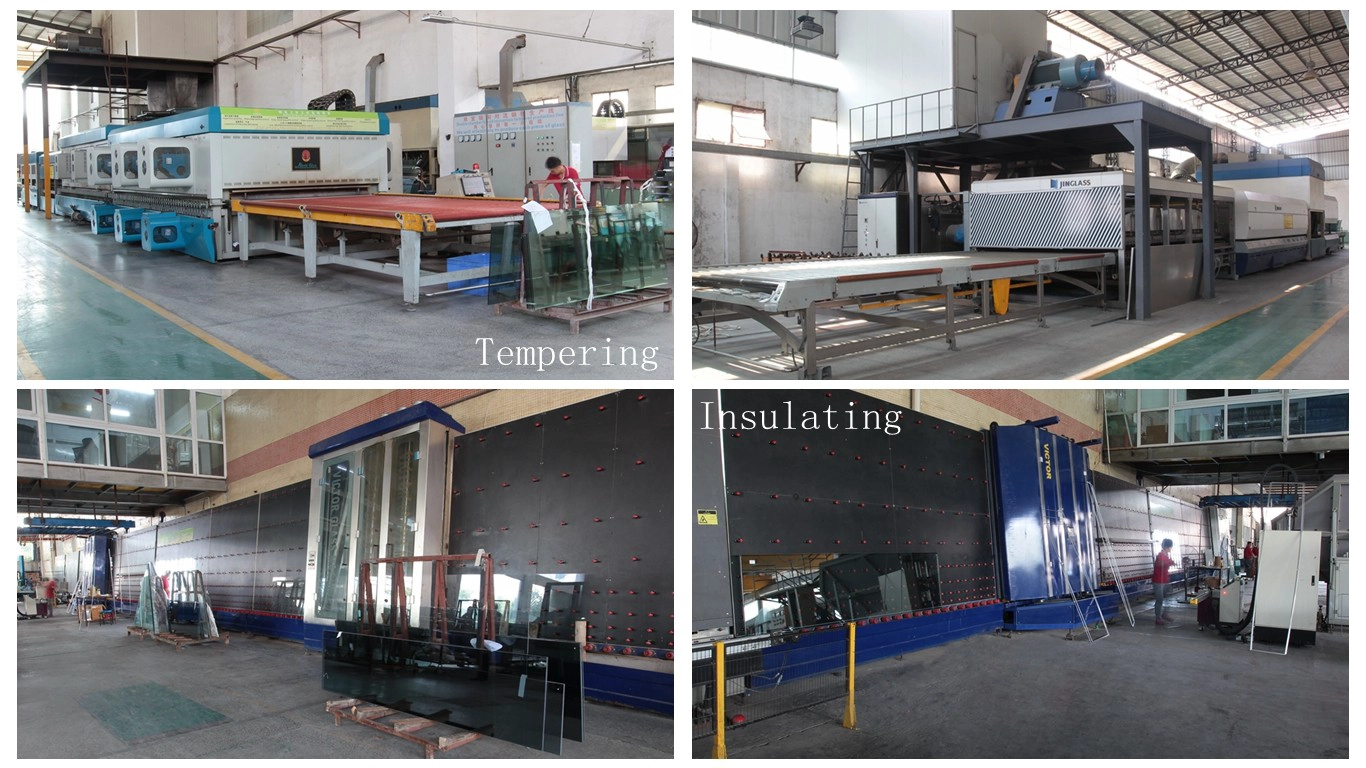

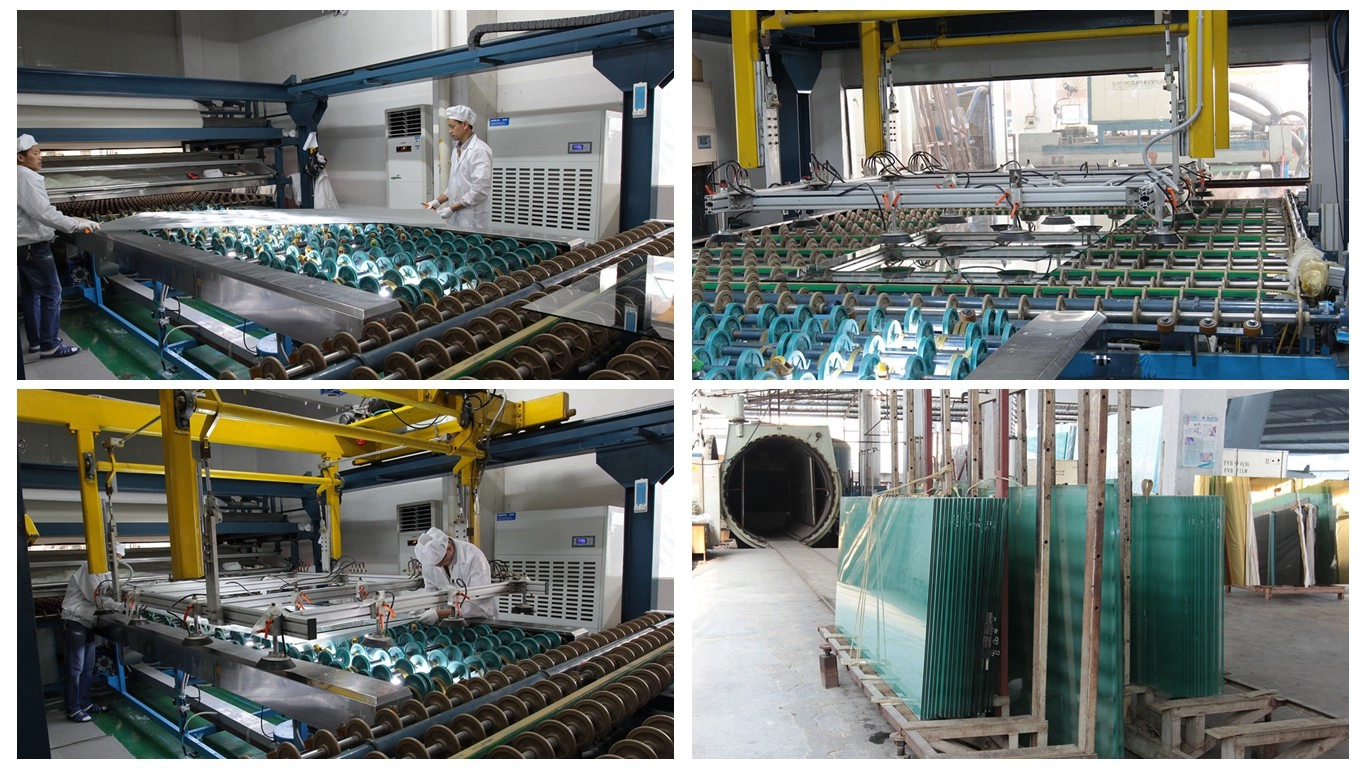

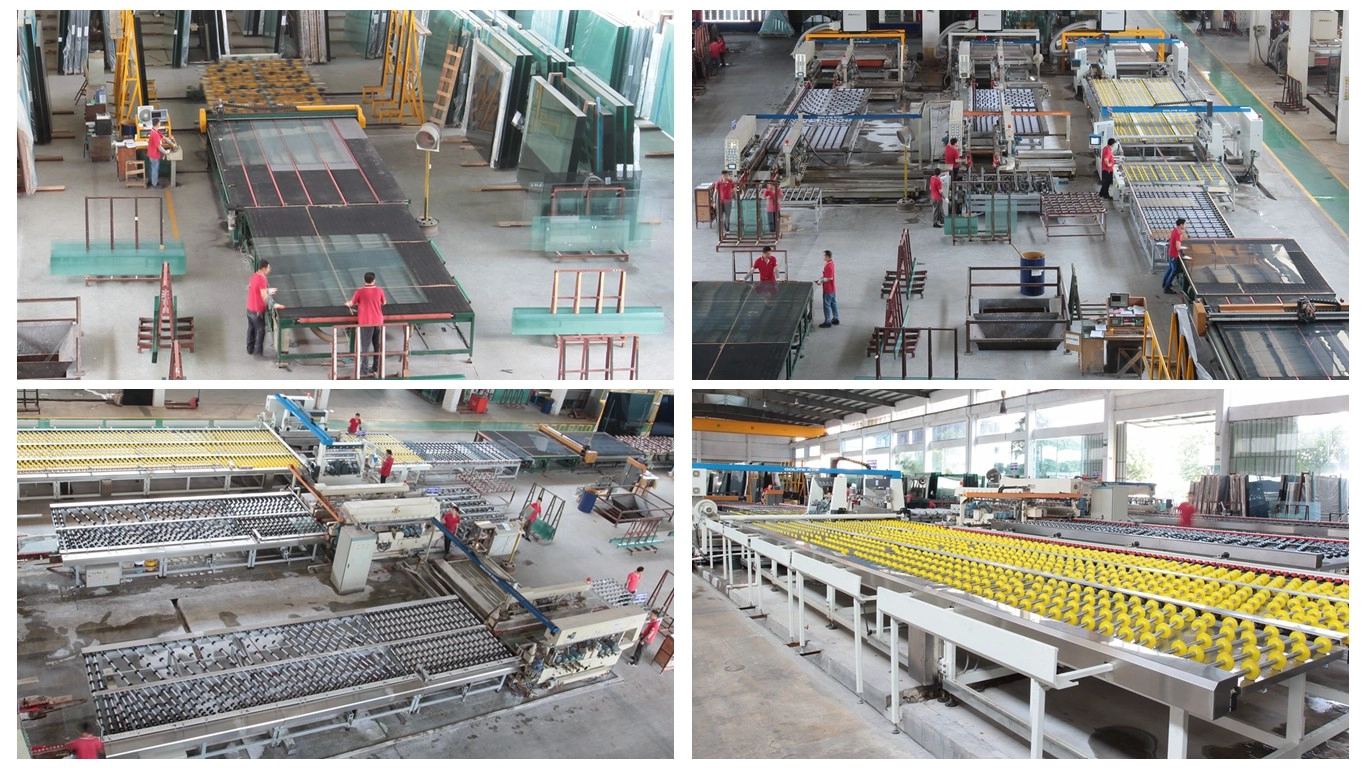

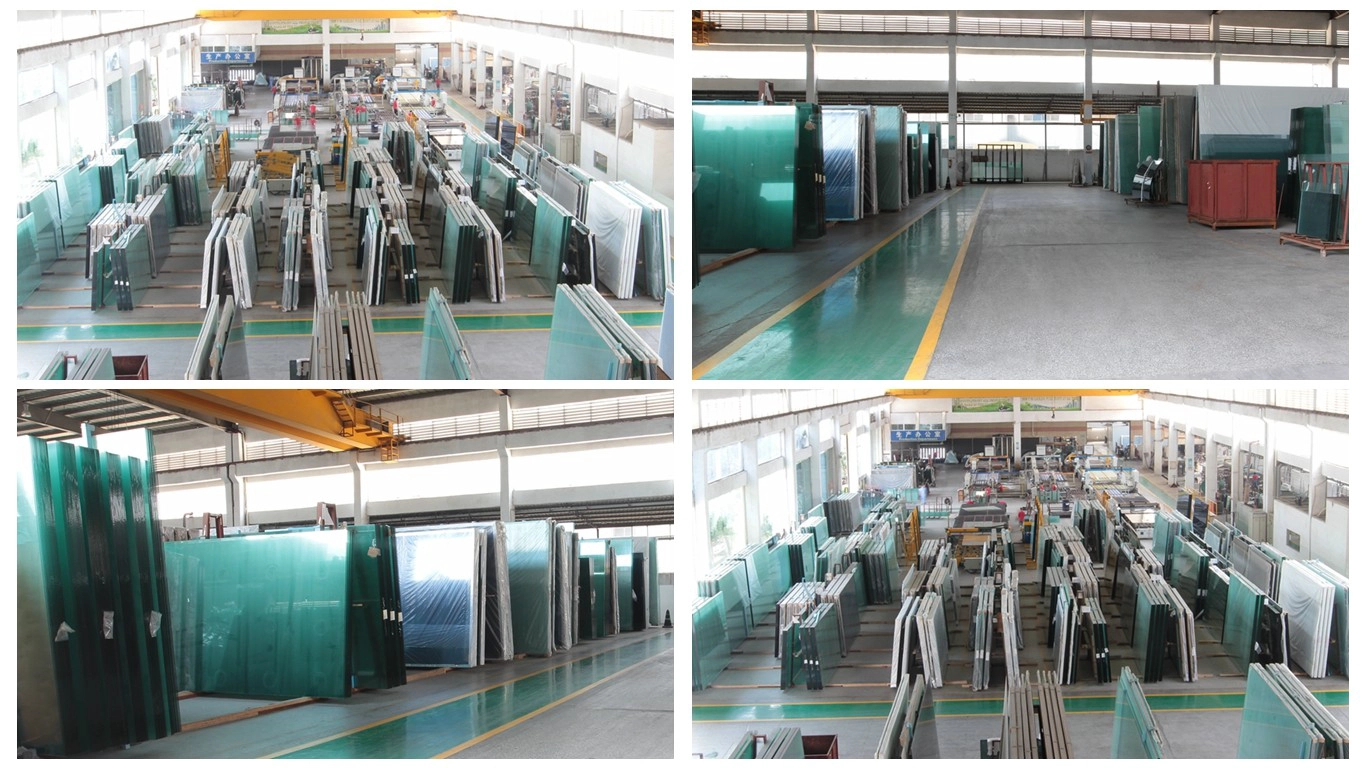

We are Kunxing Glass Products Co., Ltd. located in Dongguan, Guangdong. Since the beginning of the 1990s, we are at the foreffront of China glass product processing industry in items of research, development,manufacture, marketing and service. We have international high technology production lines and advanced equipments.
KXG Main products: Low-E glass, reflective glass, tempered glass, heat soak treatment of tempered glass, insulating glass, laminated glass, hot bending glass, curved tempered glass, color-glazed glass, etc, as well as various combinations of above mentioned products.
KXG Company has provided tens of millions of square meters of various types of glass products in the construstion of local and overseas buildings, KXG company has faith the verfication from verification from global clients, because our production capabilities,technical standards,quality management and services.
