Good price 11.52mm heat soaked test tempered laminated safety glass, 554 heat soaked test toughened laminated glass factoryGood price 11.52mm heat soaked test tempered laminated safety glass, 554 heat soaked test toughened laminated glass factoryGood price 11.52mm heat soaked test tempered laminated safety glass, 554 heat soaked test toughened laminated glass factoryGood price 11.52mm heat soaked test tempered laminated safety glass, 554 heat soaked test toughened laminated glass factory

Good price 11.52mm heat soaked test tempered laminated safety glass, 554 heat soaked test toughened laminated glass factory

  • 1.Product name: 554 HST clear tempered laminated glass, 11.52mm heat soaked test clear toughened glass
  • 2.Combination: 5mm heat soak tempered glass+1.52mm PVB+ 5mm heat soak toughened glass
  • 3.Characteristic: Soundproof, heatproof, high safety
  • 4.Advantages: Reducing the risk of tempered glass self-explosion
  • 5.Application: Balustrade, office partition wall, shop front glass etc.
  • 6.Delivery: 7-10 days after order is confirmed
  • 7.Package: All the glass packing in strong export plywood crates with steel belt
  • 8.Payment term: TT or LC at sight

Good price 11.52mm heat soaked test tempered laminated safety glass, 554 heat soaked test toughened laminated glass factory


What’s heat soak safety glass?

Heat soaked test is a process that make tempered glass be self-explosion. The process involves placing the tempered glass inside a chamber and keep the temperature to about 290ºC. The potential for NiS inclusions that may cause spontaneous breakage in tempered glass without any load or thermal stress being applied. So heat soaking is the best way to solve spontaneous breakage.

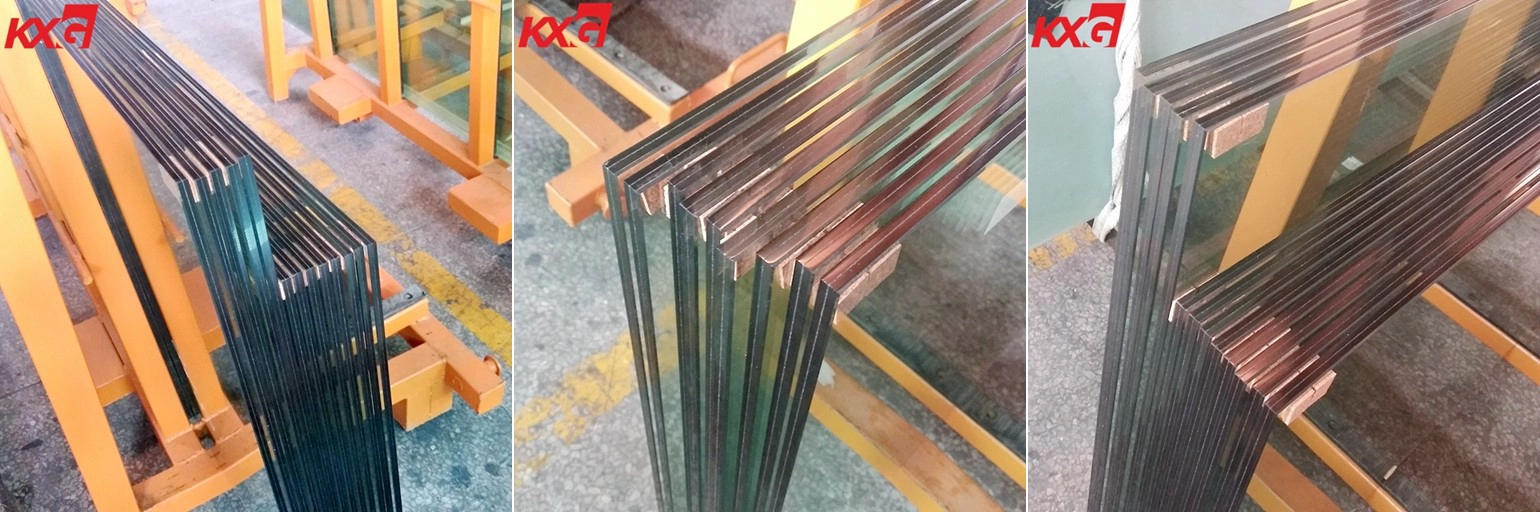

554 clear heat soak laminated glass


About 11.52mm heat soak toughened laminated glass
11.52mm heat soaking tempered safety glass is make up of 2 sheets of 5mm heat soak tempered glass and 1.52mm(4 interlayers) of PVB. It’s also named 11.52mm HST tempered laminated glass or 554 heat soaked safety laminated glass. Considering as the most safety glass, its’ widely used as railing glass, skylight glass, shop front glass and partition wall glass, etc.

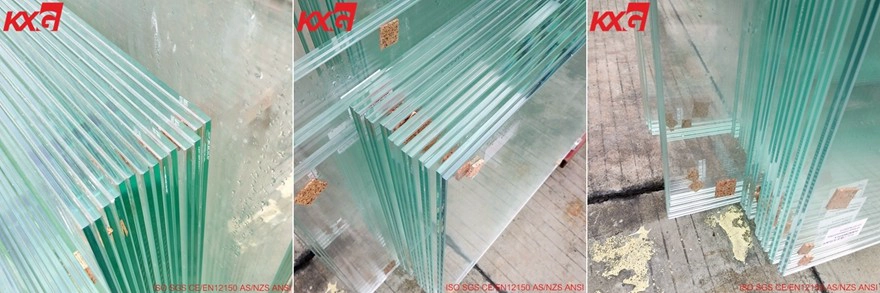

11.52mm clear heat soak toughened laminated glass


Specification of 554 heat soak test glass
1. Combination: 5mm heat soak tempered glass+1.52mm PVB film+ 5mm heat soak tempered glass
2. Thickness:11.52mm
3. Available glass type: Heat soaking of 5mm clear tempered glass, 5mm ultra clear low iron tempered glass,5mm light green tempered glass, 5mm dark green reflective glass, etc.
4. Size: max size:3000*8000mm, mini size:150*300mm
5. Special requirement: drilling holes, edge polished, cutout, logo printing etc.
6. Characteristic: soundproof, decorative, high safety, energy saving, anti UV, etc.


Tempered glass do heat soak test

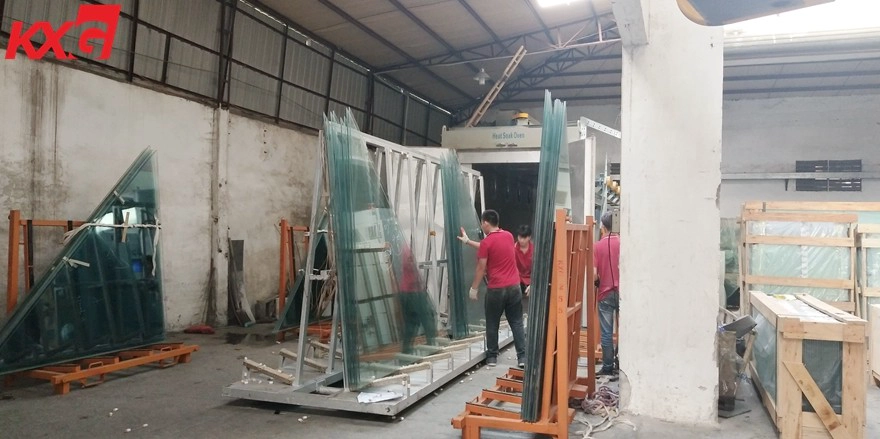

heat soak test equipment


11.52mm clear toughened laminated glass heat soak test equipment atKunxing building glass factory

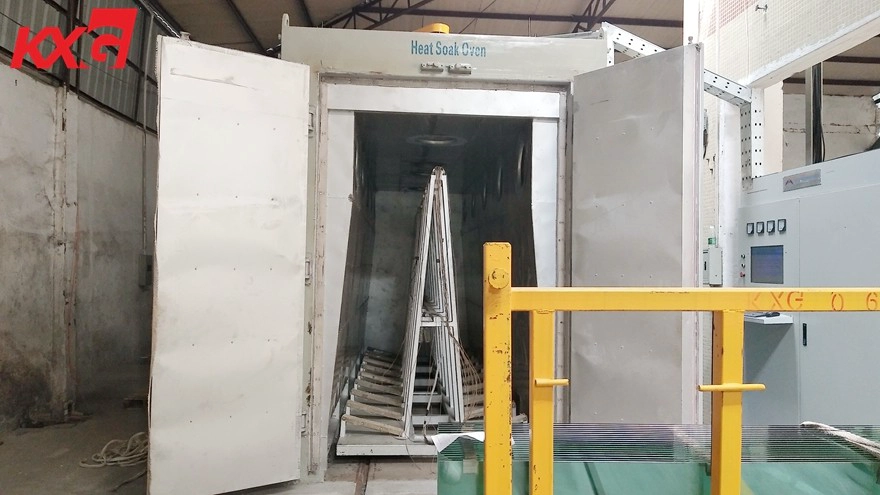

heat soak test machine
