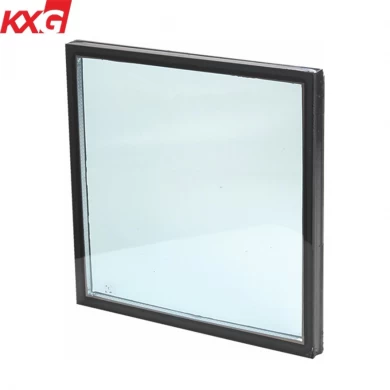

Construction real estate glass china manufacturer 8mm-12A-8mm clear low-e insulated glass price hot sale double glazing glass
- 1.Glass name:Insulated glass,Hollow glass,Double glazing glass,Insulated glass unit,IGU,Double glazing unit
- 2. Glass shape: Flat insulated glass, Curved insulated glass
- 3. Aluminum spacer: 6mm,9mm,12mm,16mm
- 4. Spacer fill: Dry air,Noble gas like Argon,Etc
- 5. Glass Thickness: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm
- 6. Max Size: According to customer‘s demand
- 7. Packing: Plywood crate with steel belt
- 8. Delivery Time: 7-10 days after receive the deposit
- 9. Application: Widely used in glass doors windows, Glass curtain wall, Partition wall, Skylight, Table top, Shower room, Etc.
What is insulated glass?
The main feature of insulating glass is that it has good heat insulation, sound insulation and anti-smog effects, and is suitable for various construction and industrial applications.
Advantages of insulated glass
The thermal insulation properties of insulating glass are one of its greatest advantages. By adding gas between the glass panels, insulated glass can effectively reduce the conduction of heat and improve the energy efficiency of the building. In winter, insulating glass can block the loss of indoor heat and keep the room warm; in summer, it can prevent outdoor heat from entering and keep the room cool.
Combination | Visible | Solar Heat | U-values | Shading Coefficient | ||||
Visible Trans | Visible Reflect | SHGC | Relative Heat Gain W/㎡ |
Winter Nightime W/㎡K
|
Summer Daytime W/㎡K
|
|||
Outdoor | Indoor | |||||||
5C+6A+5C | 81 | 13 | 13 | 0.76 | 574 | 3.06 | 3.29 | 0.87 |
5C+9A+5C | 81 | 13 | 13 | 0.76 | 573 | 2.80 | 3.06 | 0.87 |
5C+12A+5C | 81 | 13 | 13 | 0.76 | 573 | 2.67 | 2.93 | 0.87 |
6C+6A+6C | 80 | 12 | 12 | 0.74 | 561 | 3.04 | 3.27 | 0.85 |
6C+9A+6C | 80 | 12 | 12 | 0.74 | 560 | 2.79 | 3.04 | 0.85 |
6C+12A+6C | 80 | 12 | 12 | 0.74 | 560 | 2.66 | 2.91 | 0.85 |
In addition, insulating glass can effectively insulate sound. Due to the spacing between glass panels, insulating glass can reduce the transmission of external noise and create a quiet and comfortable indoor environment. Especially suitable for noisy urban environments or places where privacy needs to be protected.
Insulated glass also has the function of preventing haze. In modern cities, the smog problem is becoming increasingly serious, posing a great threat to people's lives and health. By isolating indoor and outdoor air, insulated glass can effectively reduce the entry of haze particles and provide a clean and healthy indoor environment.
Application of insulated glass
As a high-performance glass product, insulating glass can not only provide good heat insulation, sound insulation and anti-haze effects, but also has the characteristics of beauty and durability. It is widely used in office buildings, residences, hotels, shopping malls and other construction fields, creating a more comfortable and healthy indoor environment for people.
